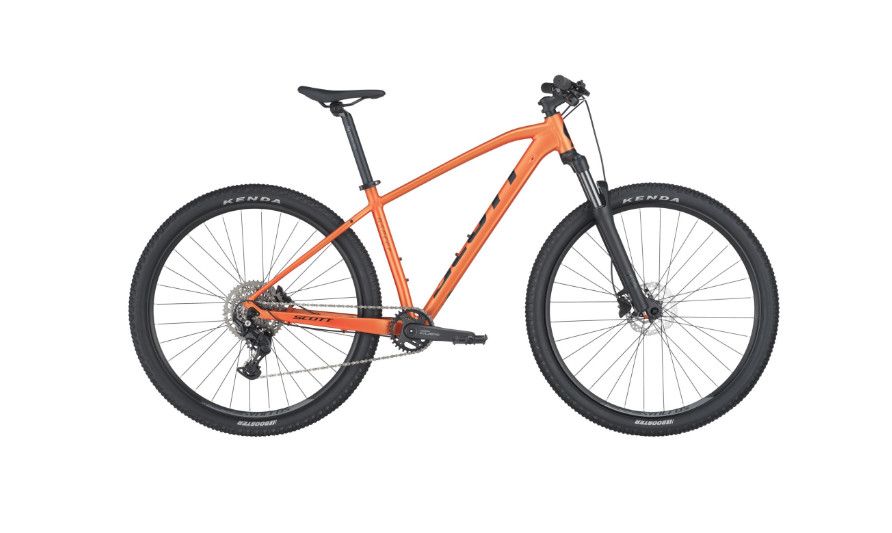

Scott Aspect 940 CU Orange XL

Featuring a lockout mechanism for the fork, disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.

• Frame

  Aspect 900-700 series / Alloy 6061 Custom Butted Tubing
  BSA73 / Internal Cable Routing / replaceable hanger

• Fork

  Suntour XCR32/X1-LO-R
  Hyd. Lockout / Reb. Adj.
  100mm travel

• Rear Derailleur

  Shimano CUES RD-U4000-GS
  Shadow Type / 9 Speed

• Shifters

  Shimano CUES SL-U4000-9 / 2 way release

• Crankset

  Shimano CUES FC-U6000-1
  32T

• BB-Set

  Shimano BB-BBMT500
  Hollowtech II / threaded

• Chain

  KMC X11

• Cassette

  Shimano CUES CS-LG400-9 / 11-46T

• Brakes

  Shimano MT200 / Hydr. Disc Brakes

• Rotor

  Shimano SM-RT10 CL rotor / F&R 160mm

• Handlebar

  Syncros 3.0 / 720mm
  black / 31.8mm / 12mm rise / 9° BS
  Syncros Pro Grip

• H'stem

  Syncros 3.0 / 7° / Black

• Seatpost

  Syncros 3.0
  31.6mm / 350mm / Black

• Seat

  Syncros 3.0

• Headset

  Syncros OE Press Fit / 1 1/8"
  OD 50mm / ID 44mm

• Hub (Front)

  Shimano HB TX505

• Hub (Rear)

  Shimano FH-TX5058

• Spokes

  14 G / stainless / black

• Rims

  Syncros X-20 Disc
  32H / black

• Front Tire

  Kenda Booster
  2.4" / 30TPI

• Rear Tire

  Kenda Booster
  2.4" / 30TPI

• Pedals

  VP VP-536
