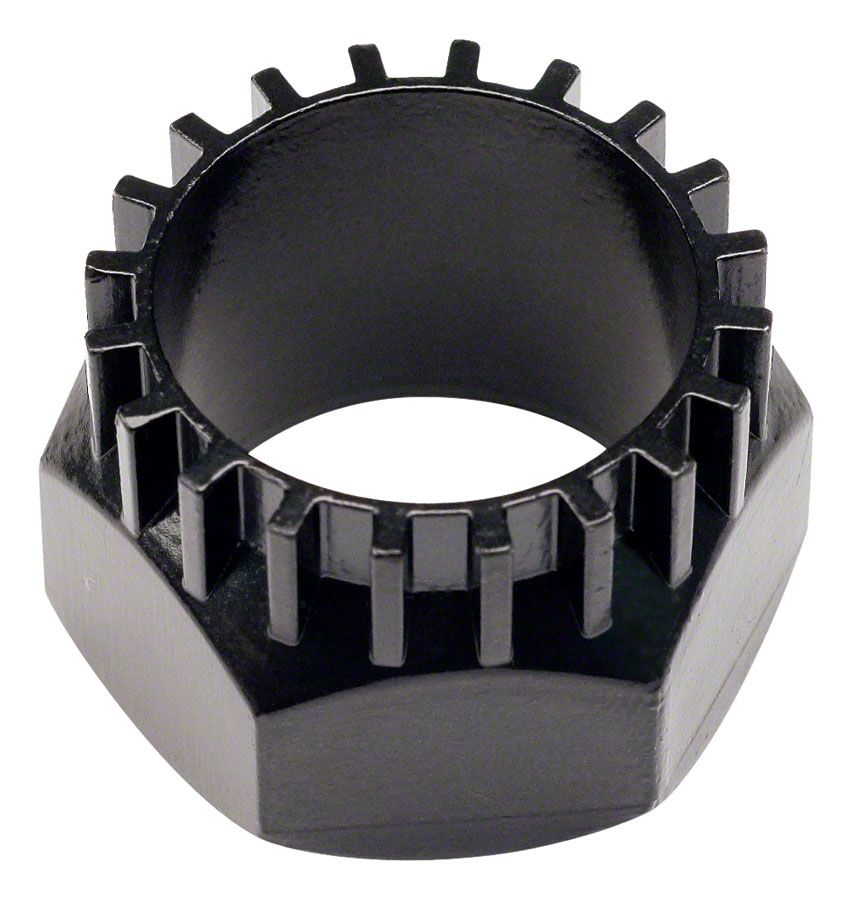

Park Tool, BBT-32, Bottom bracket tool, Cartridge type, 32mm

The Park Tool BBT-32 Bottom Bracket Tool is a compact, highly reliable workshop socket designed to install and remove 20-spline cartridge-type bottom brackets. Engineered as an economical and streamlined alternative to the heavy-duty BBT-22, it features a 32mm external hex interface instead of a built-in ratchet drive, making it a favorite for home mechanics.

Key Features

• Universal 20-Tooth Geometry:
  Delivers a precise, flush fit for 32mm diameter bottom bracket cups. It is fully compatible with popular cartridge units from Shimano, Truvativ, Race Face, and FSA.
• Oversized Spindle Clearance:
  The internal core is hollowed out completely to accommodate long, protruding spindles. This ensures it slides cleanly over bulkier ISIS Drive and Shimano Octalink crank axles.
• Investment Cast Steel:
  Formed from heat-treated alloy steel to avoid fracturing or deforming under heavy torque. Its flat-profile teeth maximize surface contact to protect aluminum and plastic cups from rounding off.
• 32mm Drive Flexibility:
  The outer casing is shaped as a 6-sided, 32mm hex head. It can be turned easily using a standard adjustable spanner, an open-end wrench, a bench vise, or a large 32mm socket.

User Sentiment & Performance

The BBT-32 maintains an excellent 4.8 out of 5-star rating based on widespread consumer feedback.

• Compact Portability:
  Reviewers love its short, lightweight footprint, noting it drops easily into a portable ride wrap or travel toolbox without adding bulk.
• Secure Engagement:
  Users confirm that when pressed firmly into the splines, it holds its ground remarkably well for a low-profile tool, making it easy to bust loose old, seized factory cartridges.
