Crank Brothers Stamp 1
SKU 16267
$89.99
Color
Size
Size specific, entry-level, composite platform pedal with optimal shoe/pedal interface.
In stock: 1 available
1
Product Details
Brand: Crankbrothers
UPC: 641300162670
Crankbrothers Stamp 1: A Popular Composite Flat Pedal for Trail, Enduro, and Street Riding
The Crankbrothers Stamp 1 is a highly popular, size-specific nylon composite flat mountain bike pedal designed for trail, enduro, and street riding.
Important Buying Context
There are two generations of this pedal available:

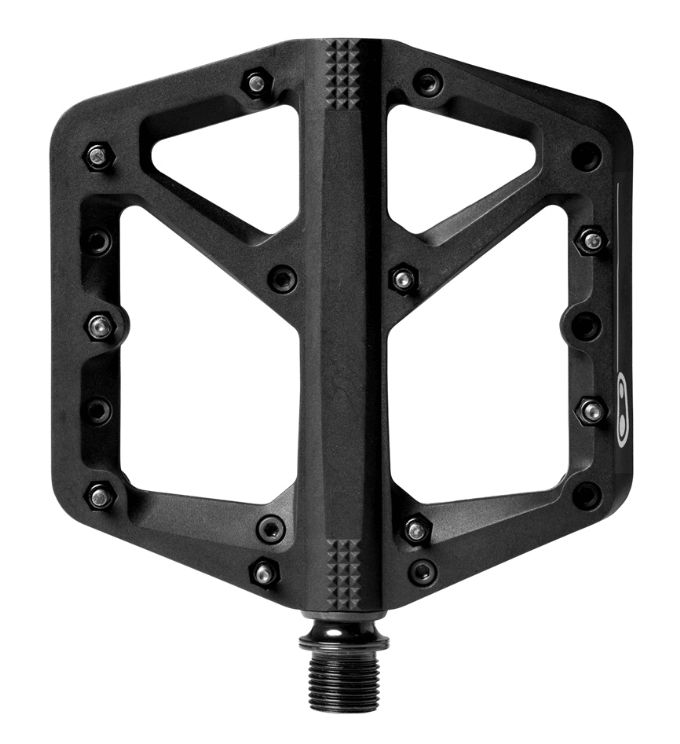

- Gen 1: Criticized for its convex "axle bump," which pushed shoes off the traction pins.

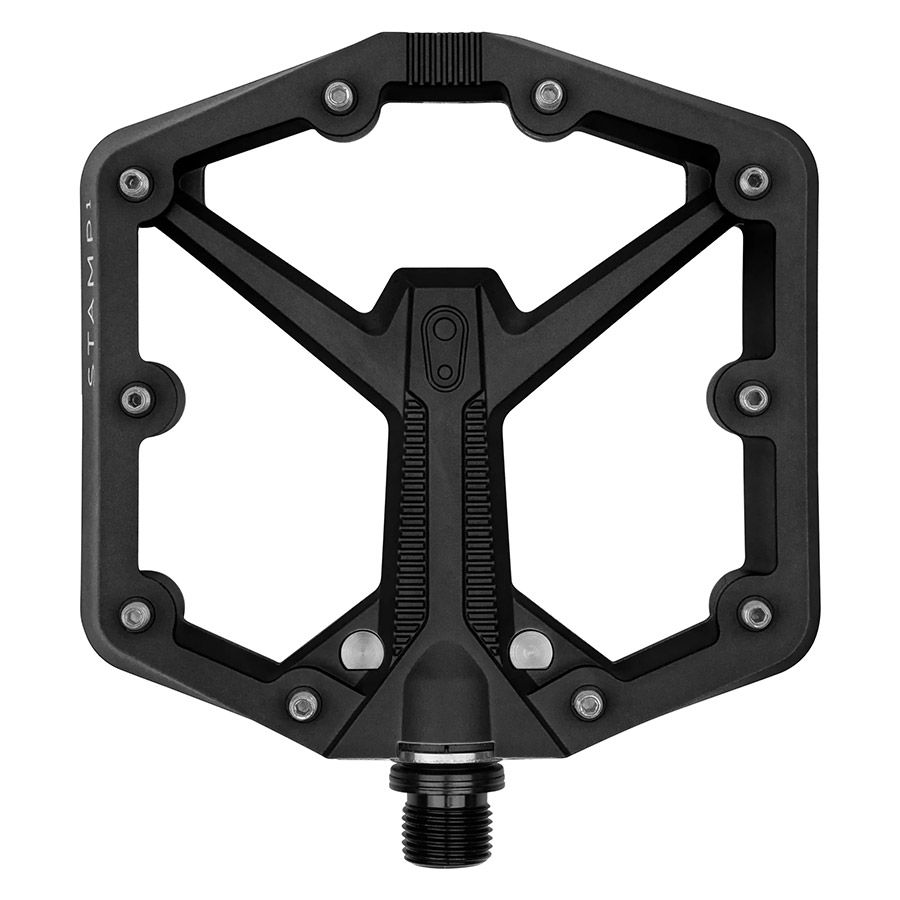

- Gen 2: Redesigned with a true concave surface inspired by the high-end alloy Stamp 7 pedal, eliminating the "axle bump" entirely.
Key Technical Specifications
| Feature | Stamp 1 (Gen 1) | Stamp 1 (Gen 2) |
|---|---|---|
| Body Design | Convex center bulge (axle hump) | True concave profile |
| Thickness | Ultra-thin 13mm profile | 13.5mm center to 15.5mm edges |
| Traction Pins | 9 adjustable grub pins per side | 10 replaceable pass-through pins |
| Internal Bearings | Igus LL-glide inner / Enduro MAX outer | Dual Igus LL-glide bearings + Enduro seal |
| Weight (Small/Large) | 299g / 329g per pair | 321g / 348g per pair |
| Typical Canadian Price | ~$39.99 CAD (clearance) | ~$74.99 to $89.99 CAD |
Platform Size Guide
Crankbrothers scales the pedal's physical surface area to match your shoe size, ensuring optimal support and reducing the risk of pedal strikes.
- Small Platform:
- Dimensions: 100mm x 100mm
- Designed for shoe sizes US 3–10 (EU 35–43.5)
- Large Platform:
- Dimensions: 114mm x 111mm
- Designed for shoe sizes US 10–15 (EU 43–49)
Whether you're a casual rider or tackling challenging trails, the Crankbrothers Stamp 1 offers a reliable and size-specific platform with improved design elements in its second generation.
